FoamDDI – Foam Digital Detection Imaging
Unique automated vision detection system for analyzing foam characteristics.
Key Features:
- Accurate measurement of foam characteristics with high precision cameras.
- Real-time monitoring and recording.
- User-friendly design with easy setup.
- Durable and low-maintenance equipment.
- Compliant with industry standards.
ASTM, D892, D6082, BS 2000, Part 156, FTM, 791-3211, IP, 146, ISO, 6247
[request_quote_button]
The ultramodern Foam Digital Detection Imaging device (FoamDDI) accurately controls airflow, temperature, and sequencing when testing foam tendencies in oils and lubricants. The fully automatic FoamDDI augments these measurements using our unique VISION Algorithm to accurately determine both the station and dynamic foam heights with precision and accuracy. Relying on the human eye to measure foam heights is unreliable, time consuming and can be costly due to user bias. The FoamDDI imaging device eliminates these issues and the need for sample manipulation and critical timing involved with other foam detector methods. Using a patented heating and cooling system the FoamDDI records, calculates, and displays accurate results with little to no operation bias. Determinations come from this foam detector in minutes! See also our StoneDDI device.
How it works:
- Using a high-resolution camera with state-of-the-art optics for lubrication testing, FoamDDI quickly brings a sample in the inserted cylinder to test temperature.
- After a soaking time, the foam detector and analyzer insert air for foam production.
- Air Flow is controlled using Mass Air Flow Controllers (MFC)
- At the 5-minute mark, an LED light source is activated.
- VISION Algorithm is activated and begins analysis.
- The complete sequence is recorded and analyzed.
- Test is completed or the next sequence can automatically be continued if desired.
Features
ASTM
CompliantASTM Compliant: Fully compliant to both ASTM D892 and D6082
Straighforward OperationStraightforward Operation: 1-2-3 wizard driven software ensures seamless user operation
Multilingual AccessibilityMultilingual Accessibility: Operation and output capabilities in the following languages: English, Spanish, Portuguese, Russian, Chinese (coming soon), French (coming soon)
Reliable AutomationReliable Automation: Completely automated testing procedures from initialization through data analysis
Maximized ThermoregulationMaximized Thermoregulation: 200W IR heating bulb and 70W Peltier cooling system augments temperature management
Dependable ParametersDependable Parameters: Built in mass flow totalizer and option to use cylindrical or
spherical diffusers ensures reliable air flow
Dual Camera ConfigurationDual Camera Configuration: 800 mL foam detection range with vibration proof optics
Optional ModularityOptional Modularity: Optional modular configuration for up to four asynchronous test
positions per logic box
Enhanced Output EfficiencyEnhanced Output Efficiency: Direct ethernet and LIMS connectivity and in unit result
transfer to reports and email
Unbiased
DigitizationUniquely operational VISION algorithm with high confidence edge contrast and straightnessl
Manual and Algorithmic CooperationManual result correction available alongside the predictive analytics
Accessories
The following accessories are recommended for purchase in sequential order (see eStore):
| 1st Year: | VISAYA FOAM-DDI 1000 mL Test Cylinder Cylindrical Gas Diffuser With Certified Spherical Gas Diffuser With Certified PTFE Stopper Complete With Compression Fittings SS Air Tube (exit air) – D892 4 Position Test Cylinder Rack PTFE Sealing Washer – D892 Replacement Air Inlet Tube with Integrated Temperature Sensor – Calibrated |
| 2nd Year: | FOAM-DDI D892 Test Assembly Filter, Regulator and Dryer System for FOAM-DDI Air Supply Pump for FOAM-DDI |
| Remaining Parts: |
Specs
| Applicable Test Methods | ASTM D892, D6082, D1881, IP 146, BS 2000 Part 156, FTM 791 3211, ISO 6247 | |
| Sequence | 1, 2, 3 & 4 | |
| Display Units | mL of FOAM, Video, and Time | |
| Detection Method | Digital Video Detection | |
| Precision | +/- 0.25% of Raw Reading | |
| Detection Method | Patent Pending Digital Detection | |
| Measuring Time | Method and Sequence Dependent (Typically <1 hr.) | |
| Calibration | Vision Calibration with Standard | |
| Display | 10.1” Projective Capacitance Touch | |
| Interfaces | Ethernet x2, USB 3.0 x1, USB 2.0 x4, HDMI, VGA, USB Print- er, USB Mouse, Keyboard |
|
| Memory / Storage | 64 GB SSD Storage | |
| Humidity | Up to 75% Non Condensing | |
| Temperature Range | 20° to 150° C | |
| Power | Auto-switching 90 ~ 264VAC, 47 ~ 63Hz, 280 Watt Power Supply | |
| Space Requirements | 80 mm (3”) on Sides and Back | |
| Weight | 10 Kg. (22 lbs.) | |
| Dimension | 350x300x270mm (14x12x11”) | |
| Gross Dimensions & Weight | 400x350x530mm, 15Kg. (15x14x21” 24lbs) |
Video
Downloads
Download our brochure for more details
Configuration
ASTM D892
| AYA-10-88605 | IPC Logix Box – Controller with Software for FoamDDI. Support for upto 4 FoamDDI Analyzers, 110/240 |
| AYA-15-00050 | Air Supply Pump for FoamDDI, 110VAC, 60Hz. |
| AYA-52-50230 | Cylindrical Gas Diffuser. Certified Mott metal cylindrical gas diffuser for use with manual systems and VISAYA FoamDDI |
| AYA-13-89000 | FoamDDI – Air Line Connection Kit. FoamDDI Connection Kit. Consisting of Wye Adapter, 6 feet of tubing, (2) 1/4″ to 1/4″ OD Adapter, tee adapter, 4 position manifold and (2) plugs for unused ports. |
Tags
eStore
You May Also Like
-
3/16" Teflon Front Ferrule
-
4 Position Test Cylinder Rack
$521.85 -
Air inlet tube
$41.58 -
Certified Norton spherical gas diffuser
$375.00 -
Cylindrical Mott Gas Diffuse Stone
$330.75 -
Filter, Regulator and Dryer System for FoamDDI
-
FoamDDI – Stopper Assembly
$546.00 -
Inline Oil Filter
-
Glass Test Cylinder
$276.00 -

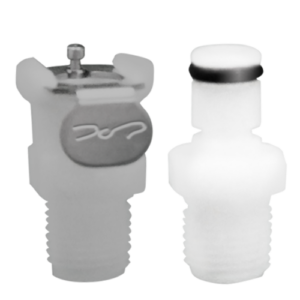

Replacement QD Fitting RDX Stopper, Air Input
-
