ERACHECK ECO

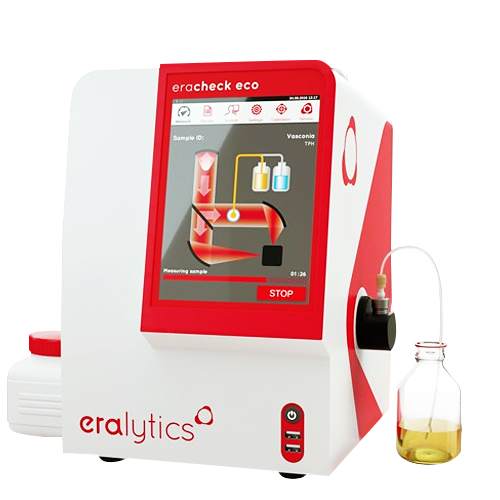

ERACHECK ECO - Image 2

ERACHECK ECO

Eco-friendly analyzer for oil-in-water measurements.

Methods:ASTMD3921D7066D7678D8193D4281DIN38409-H18EN14039EPA1664A1664B9071BIP426ISO167039377-2 (MOD) OSPAR9377-2
Login or Register to buy
  • High precision that ensures even the smallest traces of oil contamination are detected
  • Quick and reliable results
  • Compact and portable for field use
  • Automated process with simple interface
  • Compliant with standards for precise hydrocarbon detection

Key Features

features__astm compliant
ERACHECK ECO is fully compliant with ASTM D3921, ASTM D4281, ASTM D7066, ASTM D7678, providing both standard method and refined methodology.


Easy view of various info. Straightforward &
user-friendly operation.
Display colours can be changed


Convenient and easy-to-follow navigator for calibration.

Temperature Range 10-40°C, Humidity up to 90% RH, non condensing

Easy operation with sample stage at the front.

Carry Case for Asset Protection

Videos

Product video

Oil in water / Lab and field

See oil where
water should be.

TOG and TPH, 0–1000 mg/L
CFC-free cyclohexane extraction

ERACHECK ECO eco-friendly oil-in-water analyzer

Introducing the ERACHECK ECO: precision oil-in-water analysis for environmental monitoring

The ERACHECK ECO is a high-performance device designed for accurate oil-in-water analysis, crucial for environmental monitoring, regulatory compliance, and quality control. Utilizing advanced infrared (IR) spectrometry, the ERACHECK ECO oil-in-water analyzer adheres to a comprehensive range of international standards, including ASTM D8193, D3921, D7066, D7678, and D4281, ensuring reliable detection of oil content across various water samples.

Oil-in-water detection range

0–1000 mg/L

02505007501000

The analysis

Three signals make
one environmental answer.

  1. 01

    Cyclohexane

    CFC-free solvent used for liquid-liquid and solid-liquid extraction.

  2. 02

    IR spectrometry

    High-precision infrared measurement of the extracted sample.

  3. 03

    TOG + TPH

    Two essential contamination results from a single run.

Approximately five minutes per sample

The ERACHECK ECO oil-in-water analyzer uses cyclohexane as a solvent to measure Total Oil and Grease (TOG) and Total Petroleum Hydrocarbons (TPH) concentrations with high precision. The process is CFC-free and eco-friendly. The device offers a measurement range from 0 to 1000 mg/L, making it suitable for detecting even the smallest traces of oil contamination with the help of enrichment factor calculation.

Compact and portable with a durable design, dimensions of 29 × 35 × 34 cm (11.4 × 13.8 × 13.4 in), and a weight of 9.7 kg (21.4 lb), the ERACHECK ECO is suited to laboratories, field applications, and harsh environments such as oil platforms. Its user-friendly interface supports easy operation with minimal training and provides rapid, accurate results within approximately five minutes per sample, including sample preparation.

Key measuring parameters

Built for the water
that cannot be overlooked.

  1. TOG

    Total Oil and Grease

    0–1000 mg/L

  2. TPH

    Total Petroleum Hydrocarbons

    0–1000 mg/L

Applications of the ERACHECK ECO

  • Monitoring oil-in-water levels in offshore and onshore oil production
  • Ensuring compliance with environmental regulations in industrial wastewater treatment
  • Supporting research and development in environmental science
  • Quality control in industrial processes

1-year warranty

ERACHECK ECO comes with a comprehensive 1-year warranty, with an option to extend coverage for an additional year upon agreement to the manufacturer's terms.

Request a Quote

Specs

Available Test Method Based on ASTM D7678
Correlation To Infrared spectroscopy: ASTM D3921, D7066; DIN 38409-H18; OSPAR IR method; IP 426 Gas chromatography: ISO 9377-2, ISO 9377-2 (mod) OSPAR, ISO 16703; MADEP-EPH; EN 14039
Gravimetry: EPA 1664, EPA 9071; ASTM 4281; ISO 9377-1
Applications TPH (Total Petroleum Hydrocarbon) and TOG (Total Oil and Grease) measurements in water and soil
Extraction Method External liquid-liquid or solid-liquid extraction
Extraction Solvent Cyclohexane
Sample Volume Typically 900 mL water and 50 mL cyclohexane (min. 10 mL solvent required per measurement)
Sample Clean-up (TPH) Simplified removal of polar substances over attachable Florisil® cartridges
Measurement Time 5 min (including background measurement)
Measurement Range up to 1 000 mg/L oil-in-water
up to 36 000 mg/kg oil-in-soil
Limit of Detection 0.5 mg/L oil-in-water (900:50 mL H2 O:Solvent)
18 mg/kg oil-in-soil (20 g:40 mL Soil:Solvent)
Repeatability Enrichment factor 18 (900:50 mL H2 O:Solvent)
0–70 mg/L ± 0.35 mg/L
70–400 mg/L ± 1.0 mg/L
400–1 000 mg/L ± 2.1 mg/L
Interfaces Built-in PC with Ethernet, front and rear USB and RS232 interfaces Direct LIMS connectivity via LAN, output to printer or PC and export as CSV or PDF Optional input by external keyboard, mouse and barcode reader
Remote Control Remote service capability via Ethernet interface
PC Software ERASOFT RCS – remote control Windows® software for multi-instrument remote control, convenient data transfer and result analysis
Result Database Over 100 000 detailed test reports stored in internal memory
Alarm Tracking All alarm messages are stored in the database together with the result
Power Requirements Auto-switching 85–264 V AC, 47–63 Hz, max. 150 W (multi-voltage power supply) Field application: 12 V DC (vehicle battery) adapter available
Dimensions / Weight 29 x 35 x 34 cm (11.4 x 13.8 x 13.4 in) / 9.7 kg (21.4 lb)
