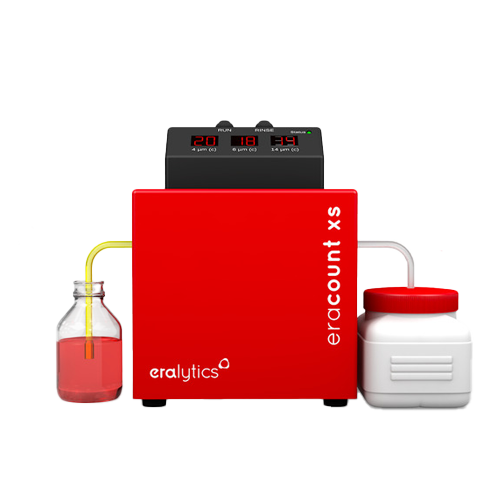

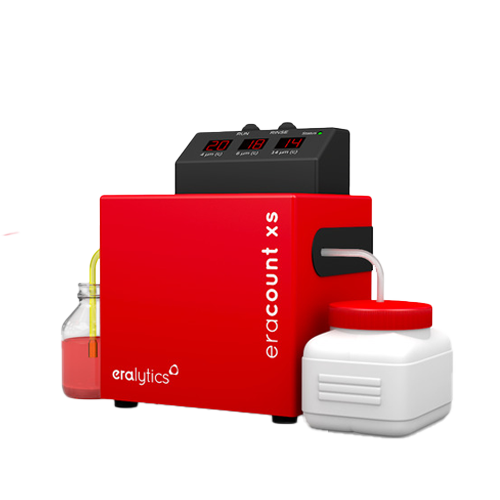

ERACOUNT XS
Compact particle counter for precise contamination analysis. An ideal replacement for HIAC particle counters.
- High-resolution counting for various particle sizes
- Real-time monitoring with quick results
- Easy-to-use software with data logging
- Portable and durable for on-site testing
- Meets international standards for particle counting
Key Features
Eracount XS is fully compliant with ISO 4406, ISO 11171, ISO 4402, SAE AS4059 providing both standard method and refined methodology.
All eralytics analyzers use an intuitive menu structure that is easy to navigate. Samples need no prior preparation and measurements are done fully automated.
A direct out-of-the-box connection to LIMS (Laboratory Information Management System) is established with a standard Ethernet cable.No extra software or PC are necessary.
The Eralytics units are all lightweight and built with an integrated carrying handle, they are versatile and ideally suited for mobile applications as well.
All Eralytics analyzer results are displayed immediately after the test on their large and user-friendly color touch screen.Videos
Fast oil condition monitoring
Less than
60 seconds.
Introducing the ERACOUNT XS: high-precision particle counting for oil condition monitoring
The ERACOUNT XS is a cutting-edge laser particle counter designed to deliver precise and reliable particle count analysis, crucial for maintaining the quality of lubricating oils, hydraulic fluids, and other types of liquids. This advanced device is essential for oil condition monitoring (OCM) in industrial applications, ensuring that machinery operates efficiently and safely by detecting particulate contamination. Utilizing the latest technology, the ERACOUNT XS adheres to international standards, including ISO 4406, ISO 11171, and IP 577, providing accurate particle counts for various fluid types with minimal sample preparation.
Minimal sample / Immediate analysis
Just 100 ml gets
the count moving.
01
Add sample
02
Press one button
03
Read results
The ERACOUNT XS requires only 100 ml of sample fluid and can begin analysis immediately, with results displayed in real time on the device's intuitive interface. The laser particle counter detects every particle that passes the sensor. From sample preparation to final results, the process is optimized for speed, supporting rapid decisions in critical operational environments. Connecting the device to other ERALYTICS units with a USB cable enables the option to see more result parameters.
Small footprint
Small beside the analyzer.
Big for machine health.
What makes the ERACOUNT XS unique is its combination of high precision, compact design, and ease of use. An automated rinsing procedure prevents cross-contamination when multiple samples are analyzed sequentially. The device can be placed beside a main analyzer and connected via USB, and once powered on it is automatically recognized as an external particle-counting module. For stand-alone operation it uses a single button, and measurements are fully automated.
20
cm W
19
cm D
26
cm H
3
kg
Applications of the ERACOUNT XS
- Monitoring contamination in lubricating oils to help prevent machinery damage
- Quality control in hydraulic-fluid production and maintenance
- Cleanliness-standard compliance in industrial fluids and the food industry
Specs
| Available test methods | ISO 4406, ISO 11171, ISO 4402, SAE AS4059 | |
| Particle size channels | 4, 6, 14, 21, 25, 30, 38, 70 µm | |
| Min. sample volume required | 5 ml at 10 ml/min, 12.5 ml at 25 ml/min | |
| Measurement time | 60 sec | |
| Max viscosity | 1000 cSt @ 22°C or 300 cSt @ 40°C | |
| Max. particle size allowed | 140 µm | |
| Sample temperature | 5 – 60°C | |
| Operation temperature | -10 to 50°C | |
| Interfaces | Micro-USB: Communication to an eralytics analyzer | |
| Power requirements | 24 VDC, max. 80 W | |
| Data transfer | ASCII Code, USB interface | |
| Dimensions (W x H x D) | 20 x 19 x 26 cm (7.9 x 7.5 x 10.2 in) | |
| Weight | 3 kg (6.6 lb) |
