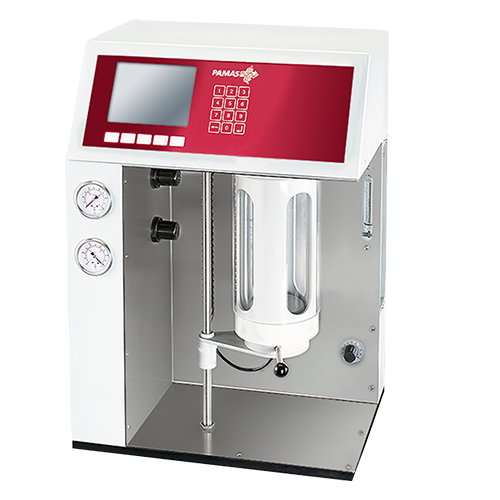

PAMAS SBSS
Advanced particle counting system for analysis of oil, lubricants, and other liquid products—an ideal replacement for HIAC particle counters.
- High-precision counting across a wide range of particle sizes.
- Real-time monitoring with detailed reporting.
- Easy-to-use software with extensive data logging capabilities.
- Robust design for reliable operation in various environments.
- Compliant with international particle counting standards.
Key Features
The Pamas SBSS (Syringe Bottle Sampling System) is fully compliant with ISO providing both standard method and refined methodology. Volmetric cell design of PAMAS sensors guarantees highest accuracy and resolution for best satistical information. 0.5pm sensitivity according to ISO 21501. 1pm sensitivity according to ISO 4402. 1.5PM(c) to ISO 11171.
Pamas SBSS: specifies fuels, analyzing Hydraulic oils, Insulation- and turbine oils, Gear- and motor oils, Water based hydraulic fluids, Organic fluids or solvents, Fluids with high vapor pressure, Pharmaceutical fluids like infusion-solutions, water and parenterals.
Printer Option
The Pamas SBSS includes an external vacuum pump which aids in the consistent delivery of the high sensitivity measurements.
Pamas SBSS has a Easy view of various info. Straightforward & user-friendly operation. Display colors can be changedVideos
PAMAS SBSS / Reference particle counting
Programmable analysis.
No operator required.
A reference system for testing laboratories
The PAMAS SBSS is fully compliant with ISO 21501, ISO 4402, and ISO 11171. The PAMAS SBSS is the standard liquid particle counter used as a reference in many testing labs. The particle count measurement instrument may be programmed to measure a sample without the need of an operator.
Automated sample preparation
Prefill. Pressurize.
Measure. Relieve.
One programmed sequence, start to finish, without an operator in the loop.
The system can prefill the internal dead volume, pressurize the sample for a number of measurement runs, and relieve pressure at the end. For preparation, a pump including an air dryer is available to degas the sample with vacuum and to filter and dry the compressed air.
Key system benefits.
Its high accuracy and repeatability, fast purging, and backflush possibility are the key benefits of the system.
Built in
- High accuracy and repeatability
- Fast purging
- Backflush possibility
Precision + Range
One counter.
Three sensor options.
Three interchangeable sensor modules cover different needs: the standard PAMAS HCB-LD-50/50 spans 4–70 µm(c) per ISO 11171 (1–100 µm per ISO 4402, 1–200 µm per ISO 21501-3) at up to 24,000 P/mL; the PAMAS HCB-LD-25/25 covers the same size range at up to 120,000 P/mL for higher-concentration samples; and the PAMAS SLS-25/25 narrows to 1.5–25 µm(c) per ISO 11171 for fine-particle work. Counting runs across 8, 16, or 32 free-adjustable size channels, shown on a backlit 320×240 graphical display, with an integrated 32-column thermoprinter and data transfer over RS-232C.
Built for reference-grade work.
Pressure and viscosity headroom is set by the pump configuration fitted, up to the system's full 10 bar and 1,600 cSt ceiling.
At a glance
- Pressure up to 10 bar
- Viscosity up to 1,600 cSt
- 8, 16, or 32 adjustable channels
- RS-232C data transfer
Broad sample capability
High pressure.
High-viscosity samples.
- 01
Pressure
Equipped with a liquid particle counter operating up to 10 bar.
- 02
Viscosity
Measures liquid samples up to 1,600 cSt.
- 03
Sample Types
Hydraulic oils, insulation and turbine oils, gear and motor oils, water-based hydraulic fluids, organic fluids and solvents, pharmaceutical fluids such as infusion solutions, water, and parenterals.
Specs
| Applicable Test Methods | ISO 4406, SAE AS 4059 E, NAS 1638, GJB 420, GOST 17216, NAVAIR 01-0A-17 | |
| Pressure range | • Standard accessory pump: up to 5 bar • High pressure pump or external pressure supply: up to 10 bar |
|
| Volumetric sensors: PAMAS HCB-LD-50/50 | Size ranges: 1-200 µm (ISO 21501-3), 1-400 µm: option on request 1-100 µm (ISO 4402) 4-70 µm(c) (ISO 11171) Max. particle concentration: 24.000 P/ml* at 25 ml/min** |
|
| PAMAS HCB-LD-25/25 | Size ranges: 1-200 µm (ISO 21501-3) 1-100 µm (ISO 4402) 4-70 µm(c) (ISO 11171) Max. particle concentration: 120.000 P/ml* at 25 ml/min** |
|
| PAMAS SLS-25/25 | Size ranges: 0,5-20 µm (ISO 21501-2) 1-20 µm (ISO 4402) 1,5-25 µm(c) (ISO 11171) Max. particle concentration: 13.000 P/ml* at 10 ml/min** |
|
| Size | 400 mm x 300 mm x 600 mm (W x D x H) | |
| Counter | • 8, 16 or 32 free adjustable size channels; the thresholds are free selectable within the measuring range of the particle sensor • Backlit graphical LC-display with 320 x 240 pixel resolution. • Integrated 32 column thermoprinter • Data transfer: 8 Bit ASCII code, RS-232C port • Power supply via alternating current: 100 V, 115 V, 220 V, 230 V, 50–60Hz |
