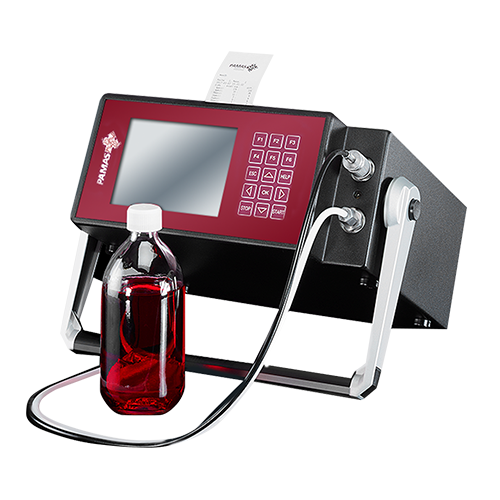

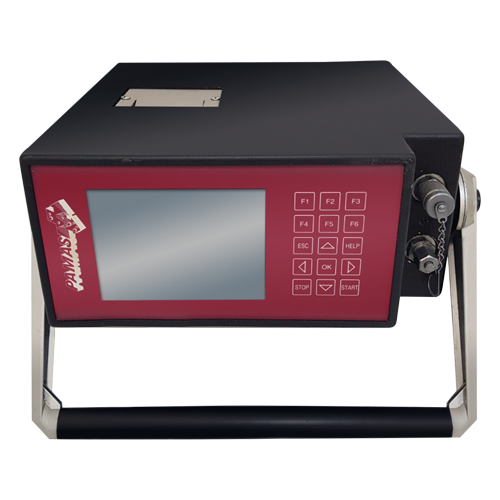

PAMAS S40
Portable particle counting system for field usage. An ideal replacement for HIAC particle counters.
- Compact and lightweight design for easy transport.
- Designed for remote operation.
- Quick and accurate particle analysis.
- User-friendly touch screen interface.
- Compliant with ISO and other cleanliness standards.
Key Features
The Pamas S40 is fully compliant with ISO providing both standard method and refined methodology. According to ISO 4406:1987/1999 4pm(c), 6pm(c), 14pm(c) based on ISO 11171.
The Pamas S40 Pressureless sampling as well as pressurised up to 420 bar(6000 psi) offers a range of flexible options, including the Liquids Auto Sampler.
S40 has multi-lingual capabilities for display and print-out formats in the following languages: English, Spanish, Dutch, Finnish, Portuguese, Russian, Chinese, French. The system can be programmed to any other language (optional).
The Pamas S40 has a User-friendly operation touch screen with graphic display. Easy view of various info. Straight forward operation. While Display colors can be also changed
Printer Option
Rugged Steel Case is designed to protect the unit, with its insulated foam. Another great trait is that it is shake proof for guaranteed protection. (optional)
The Pamas S40 user has programmable methods. Any methods that have been saved to memory.
The Pamas S40 is equipped with a Convenient and easy-to-follow navigator for calibration.
The PAMAS S40 has a LCD Temperature Display to provide temp accuracy.
The volumetric cell design of PAMAS sensors guarantees the highest accuracy, resolution and best statistical information. Users can set time to the instrumentation needs. Pressurised sensor avoids formation of gas bubbles.Videos
PAMAS S40 / Portable particle counting
Count and size particles.
Wherever testing happens.
Designed for oil and hydraulic fluids
The PAMAS S40 portable oil particle counter is fully compliant with ISO 4406, including ISO 11171, providing both standard method and refined methodology. The PAMAS S40 is a portable particle counter system designed to count and size particles in oil and hydraulic fluids.
Guided operation
Simple controls.
Instant measurement results.
A guided menu, a backup keypad, and results on paper before you leave the bench.
The system contains a backlit touch screen for easy access to the guided menu. It also contains an additional membrane keypad for easy operation of the oil particle counter. The integrated printer provides instant hard copies of measurement results.
Designed for easy operation.
Fully compliant with ISO 4406 at 4, 6, and 14 µm(c), based on ISO 11171, for standard and refined cleanliness reporting.
On the instrument
- Backlit touchscreen
- Additional membrane keypad
- Integrated printer
Precision + Range
Every particle.
Every pressure.
A wear-resistant ceramic piston pump holds a constant flow across pressureless, low-pressure, and high-pressure sampling up to 420 bar (6000 psi). The PAMAS HCB-LD-50/50 volumetric sensor is calibrated to 4–70 µm(c) per ISO 11171 as standard, with an optional 2–100 µm calibration per ISO 4402, at a maximum particle concentration of 24,000 P/mL.
Built for field and bench.
Standard sampling covers fluids up to 200 cSt, extending to 350 cSt under pressurized sampling and 1,000 cSt on the lube oil system.
At a glance
- Viscosity up to 200 cSt (1,000 cSt lube oil)
- Pressure up to 420 bar (6000 psi)
- 24,000 P/mL max concentration
- USB data transfer, 8-bit ASCII
Data and automation
Automated sampling.
Easy data transfer.
- 01
32-Bit Microprocessor
Allows multiple automated sampling and data storage.
- 02
PC Data Transfer
Downloadable, user-friendly software transfers stored measurement data to any PC. Data files are compatible with spreadsheet software such as Microsoft Office Excel.
- 03
Language Support
Standard languages include English, German, Finnish, Dutch, French, Spanish, Portuguese, Chinese, and Russian. The system can optionally be programmed in another language.
Specs
| Applicable Test Methods | ISO 4406, SAE AS 4059 E, NAS 1638, GJB 420A, GOST 17216 | |
| Technical data Sampling system | • Wear resistant ceramic piston pump with controlled constant flow • Viscosity range up to 200 cSt (pressurised sampling up to 350 cSt; lube oil system up to 1,000 cSt) |
|
| Pressure range | • Low pressure: from pressureless up to 6 bar (85 psi) • High pressure: 3-420 bar (6000 psi) |
|
| PAMAS Volumetric Sensor: HCB-LD-50/50 | Calibration ranges: • 4-70 µm(c) according to ISO 11171 (standard calibration) • 2-100 µm according to ISO 4402 (optional calibration) Max. particle concentration: • 24.000 P/ml at a fl ow rate of 25 ml/min and a coincidence rate of 7.8% |
|
| Counter | • 32-bit high performance CPU with sophisticated programmable digital domain signal conditioning and 4096 internal channels • 8-channel particle counter • Data printout: 32 column thermo printer • Data transfer: 8 bit ASCII code through USB port • Power supply: 90-240 V AC / 50-60 Hz or 12-30 V DC or via intgrated battery for up to three hours operation • Weight and Size: Approx. 8 kg 310 mm x 145 mm x 360 mm |
