AgDDI – Silver Digital Detection Imaging
Advanced detection system for silver corrosion in various samples.
Key Features:
-
- High sensitivity for detecting the grade of silver corrosion.
- Accurate and repeatable measurements.
- User-friendly interface for easy operation.
- Robust design suitable for laboratory and field use.
- Compliant with different standards.
ASTM, D4814, D7671, IP, 611
Sulfur-based corrosion is on the rise in the refining industry and the AgDDI is here to help. The Silver Digital Detection Imaging device (AgDDI) from VISAYA uses a four-step automated VISION Algorithm and classification process to eliminate user bias. Ensuring fuel stays within acceptable limits requires constant and accurate corrosion testing equipment. The AgDDI takes the user bias out of the equation. No more having to evaluate corrosivity by interpreting the color and tarnish level of a silver strip soaked in a fuel sample by hand. First, AgDDI identifies the silver strip's length and width. Next, the algorithm assigns the sample an integer between 0 and 4 representing corrosivity (0 = no corrosion at all & 4 = significant blackening). AgDDI provides standardization to the current visual silver strip corrosion test as referred in ASTM D7671 and gasoline fuel specification ASTM D4814.
Features
AgDDI is fully compliant with ASTM D4814, ASTM D7671, providing both standard method and refined methodology.
AgDDI’s easy-to-use touch screen driven software provides simplified operation and results access for end users at all levels.
AgDDI’s 1-2-3 button operation is paired with digital outcome and image logging for an easy interface.
A small footprint of 400x350x530mm at 15 Kg. (15x14x21)
AgDDI has multilingual capabilities for display and print-out formats in the following languages: English, Spanish, Portuguese, Russian, Chinese (coming soon), French (coming soon)Accessories
The following accessories are recommended for purchase in sequential order (see eStore):
| 1st Year: | Silver test coupon for D7671, IP227, ea. Polishing VISE – Holds 6 Strips D7671 Cradle, PTFE, Silver Strip Holder, Procedure A. Test Tubes, 25-mm x 150-mm, Dozen Viewing Test Tube, Each Silicon Carbide Sheets, 240-Grit, 50 Pack Silicon Carbide Grains/Powder, 150 mesh, 450 grams CuDDI/AgDDI calibration standard. Used as daily QC/Validation and calibration of camera & motor position. Supplied in storage case with certificate valid for one year. |
| 2nd Year: | Test Pressure Vessels Replacement NFX Handle (Integrated Motor) Replacement Glass Overlay – VISAYA Replacement Power Board – Universal Input Replacement Z-Drive – Supplied with Camera Mount |
| Remaining Parts: |
Specs
| Available Test Methods | ASTM D4814, ASTM D7671, IP 611, |
| Corrosion Detection Range | 0, to 4 & Levels |
| Display Units | Color, ASTM Rating and Strip Size |
| Detection Method | Patent Pending CMOS Digital Detection |
| Precision | +/- 0.25% of Raw Reading |
| Optical Design | Patent Pending Optical Arrangement |
| Light Source | LED, 7,000K |
| Measuring Time | 2.5 minutes |
| Calibration | Vision Calibration with Standard |
| Display | 10.1” Projective Capacitance Touch (Multi Touch) |
| Interfaces | Ethernet x2, USB 3.0 x1, USB 2.0 x4, HDMI, VGA, USB Printer, USB Mouse and Keyboard |
| Memory / Storage | 64 GB SSD Storage |
| Temperature Range | 10° to 35° C |
| Humidity | Up to 85% Non Condensing |
| Auto-switching 90 ~ 264VAC, 47 ~ 63Hz, 280 Watt Power Supply | |
| Space Requirements | 80 mm (3”) on Sides and Back |
| Dimension | 350x300x270mm (14x12x11”) |
| Gross Dimensions & Weight | Weight 10 Kg. (22 lbs.) 400x350x530mm, 15 Kg. (15x14x21” 33lbs.) |
Videos
Downloads
Download our brochure for more details
Tags
Related
Related Products
-
Automated Aniline Point Tester
-
Refrigerated Baths for Manual Testing of Cloud Point, Pour Point, and Cold Filter Plugging Point of Petroleum Products
-
Automated Cleveland Open Cup Flash Point Tester
-
(INACTIVE) Automated Distillation Tester AD-6
-
ERASPEC OIL
-
FeDDI – Iron/Rust Digital Detection Imaging
-
Micro-Z ULSD Analyzer
-
CuDDI – Copper Digital Detection Imaging
eStore
You May Also Like
-
Silicon Carbide Grains
$53.90 -
Calibration Specimen, NFX CuDDI
$307.00 -
Copper Multi-Strip Polishing Vise
$702.00 -
D7671 Cradle
$260.00 -
Replacement Glass Overlay
$255.00 -
Replacement NFX Handle
$1,950.00 -
Replacement Power Board
$422.00 -
Replacement Z DRIVE
$1,169.00 -
Silicon Carbide Sheets, 240-Grit
$207.90 -

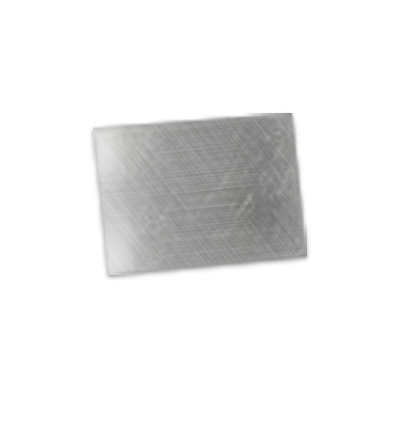

Silver Test Coupon | Silver Corrosion Test
